| X1 Type-MPX |
|
|

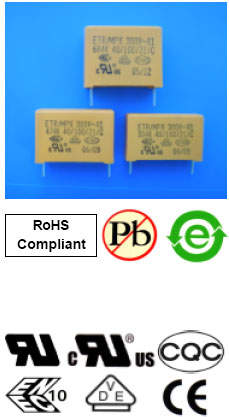

 THE Type-MPX are constructed with special metalized polypropylene film dielectric , tinned copper wire leads , encapsulated in plastic case with epoxy resin sealed , in non-inductive type.
FEATURES:
■ Self-healing property.
■ High moisture resistance.
■ Overvoltage stress withstanding.
■ UL , CUL , CQC and European safety regulations class X1.
(Meeting EN132 400 1994/ IEC 60384-14 2nd 1993)
■ Flame retardant plastic case and epoxy resin (UL-class 94V-0).
APPLICATIONS:
They are ideal for line-by-pass , across-the-line , antenna coupling,spark killer circuits , switching power supply and available for EMI filter application.
SPECIFICATION:
1.Operating temperature : -40℃ ∼ +100℃
2.Capacitance range : .0047μF ∼ 6.8μF
3.Capacitance tolerance : K=±10% , M=±20%
4.Rated voltage (RV) : 300VAC / 50Hz∼60Hz
5.Dissipation factor (DF) : 0.1% max (at 1KHz 25℃)
6.Testing voltage (TV) : 1300vdc 60sec or 2000vdc 1sec
7.Insulation resistance (IR) : C≦.33μF,≧15,000MΩ (at 25℃)
(Measured at 100±15vdc , 60s) C＞.33μF,≧ 5,000MΩ.μF
 |
